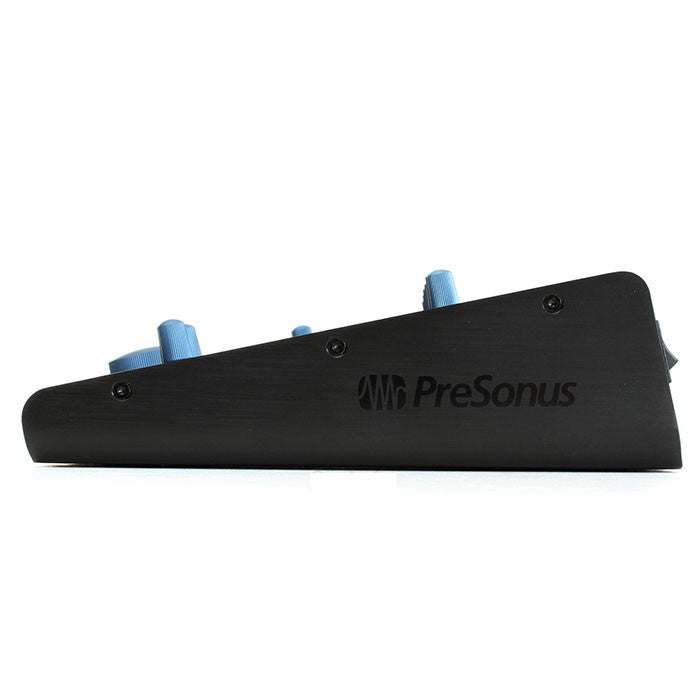

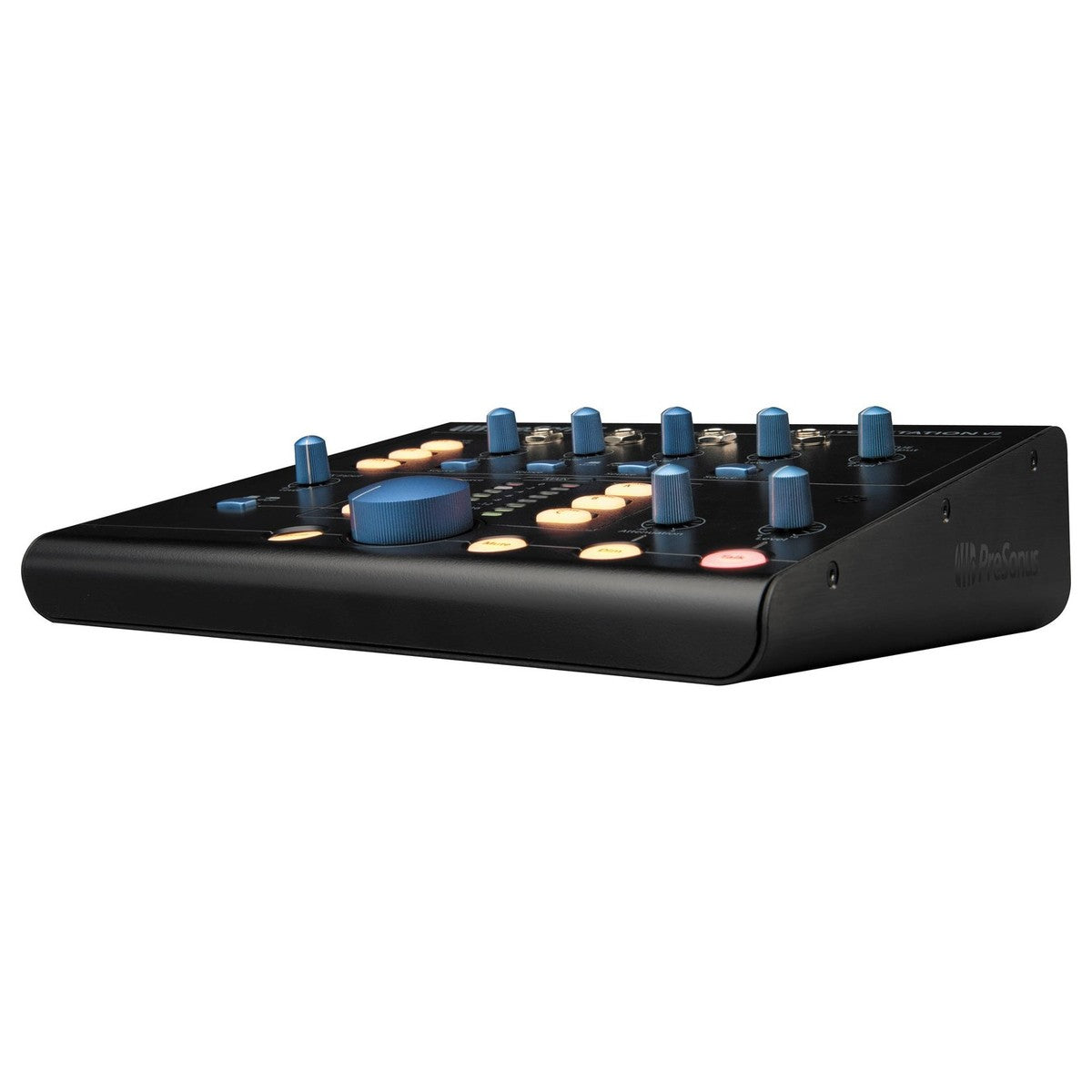

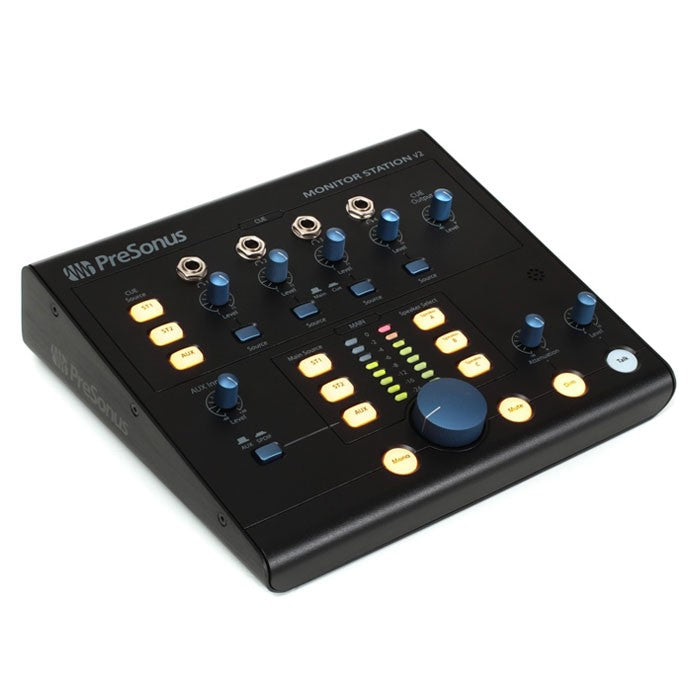

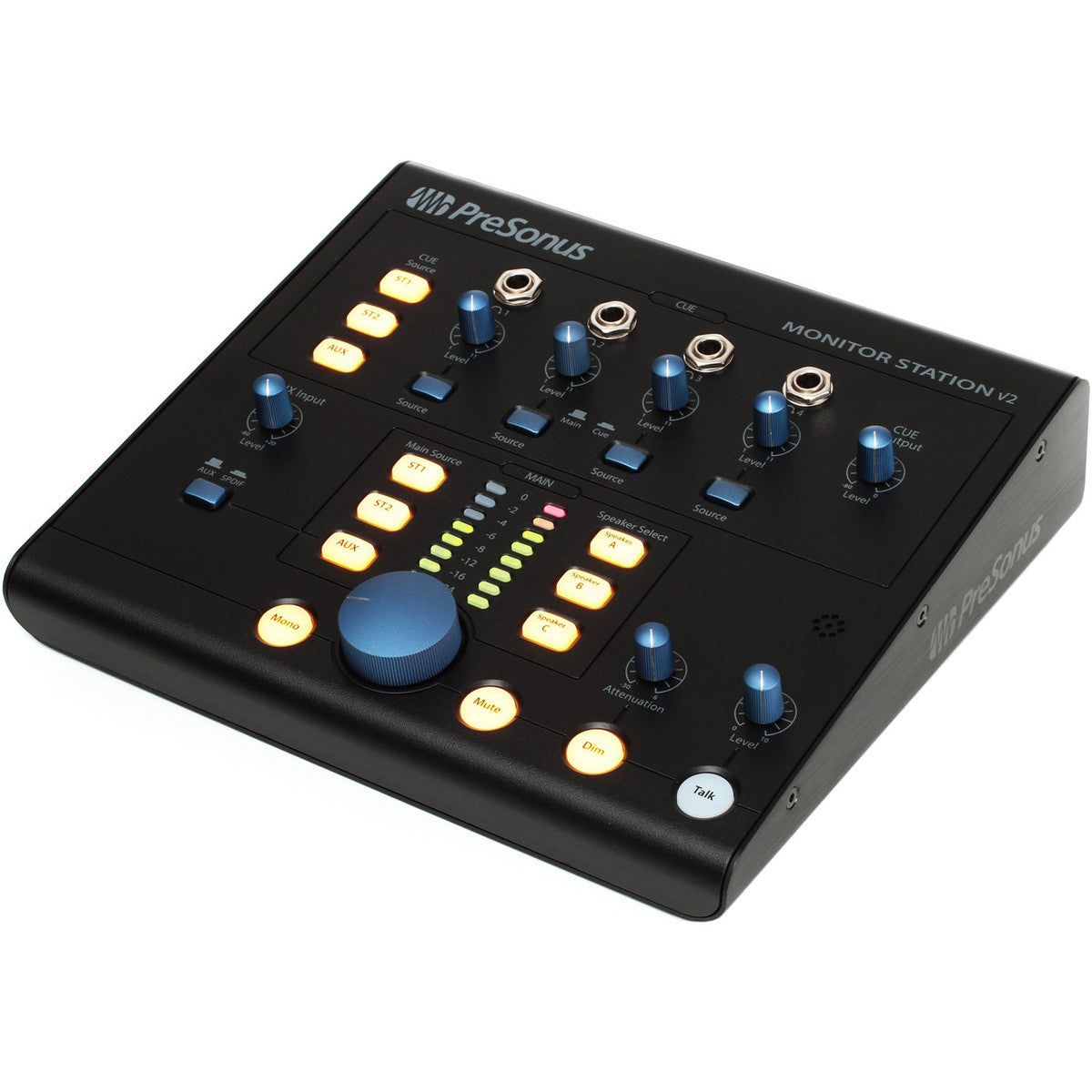

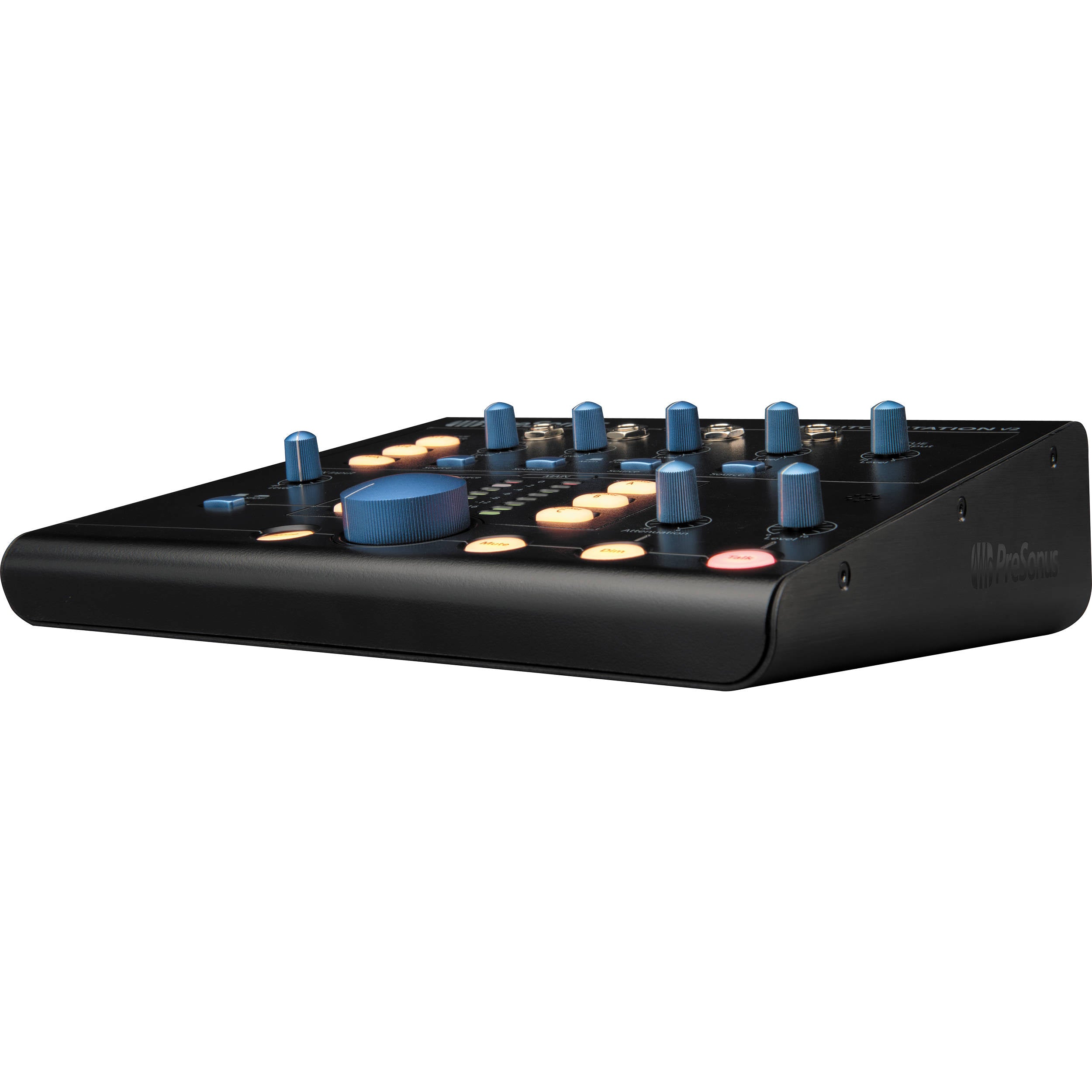

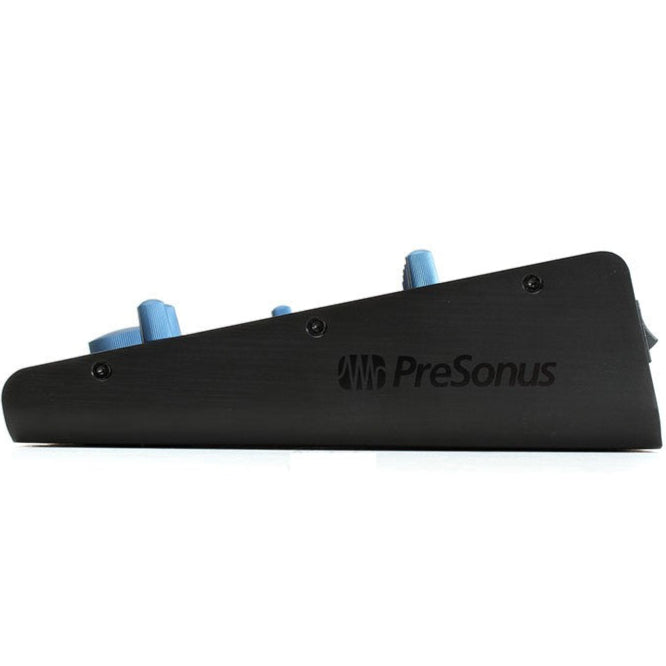

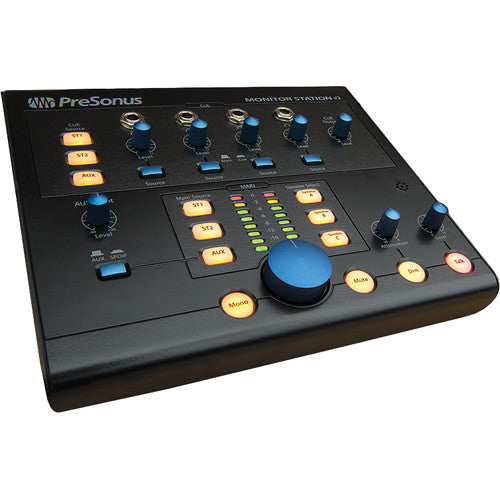

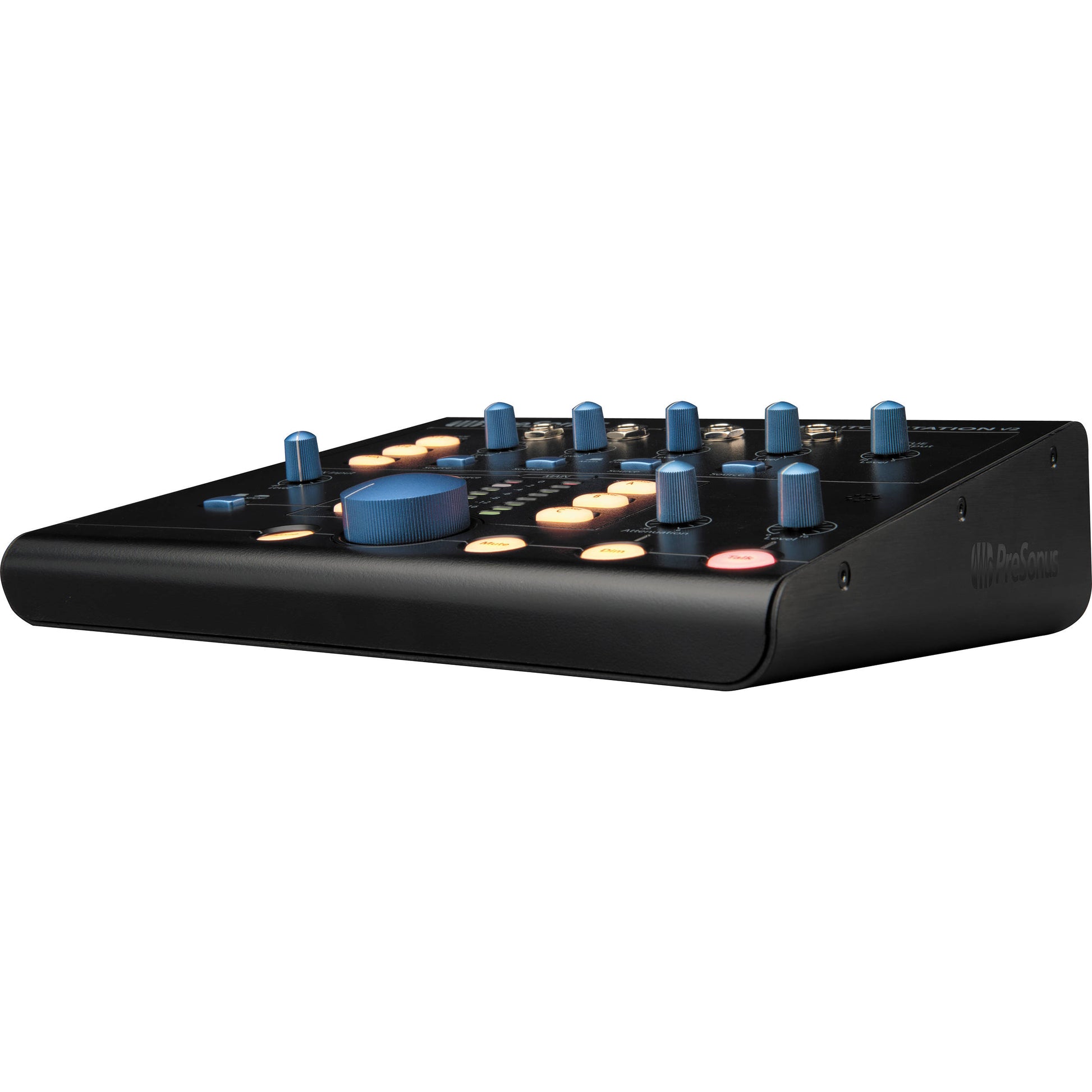

PreSonus Monitor Station V2 – Versatile Desktop Monitoring Controller
The PreSonus Monitor Station V2 gives you comprehensive control over your studio monitoring in a solid, space-saving desktop unit. Easily switch between multiple sources and speaker pairs, manage headphone outputs and talkback, and use precision controls to streamline your monitoring setup—designed for clarity and control at Soundium.
Key Features
- Four stereo input sources: Two balanced ¼″ TRS pairs, one unbalanced RCA pair with level control, and one selectable ⅛″ aux input or S/PDIF digital input (up to 96 kHz).
- Three speaker outputs with level trims: Switch effortlessly among up to three monitor pairs (A, B, and C/sub), with accurate level calibration.
- Four headphone outputs: Each with Main/Cue switching and individual level control for flexible monitoring setups.
- Talkback microphone onboard: Built-in mic with variable gain and Talk button that dims other outputs when in use for seamless communication.

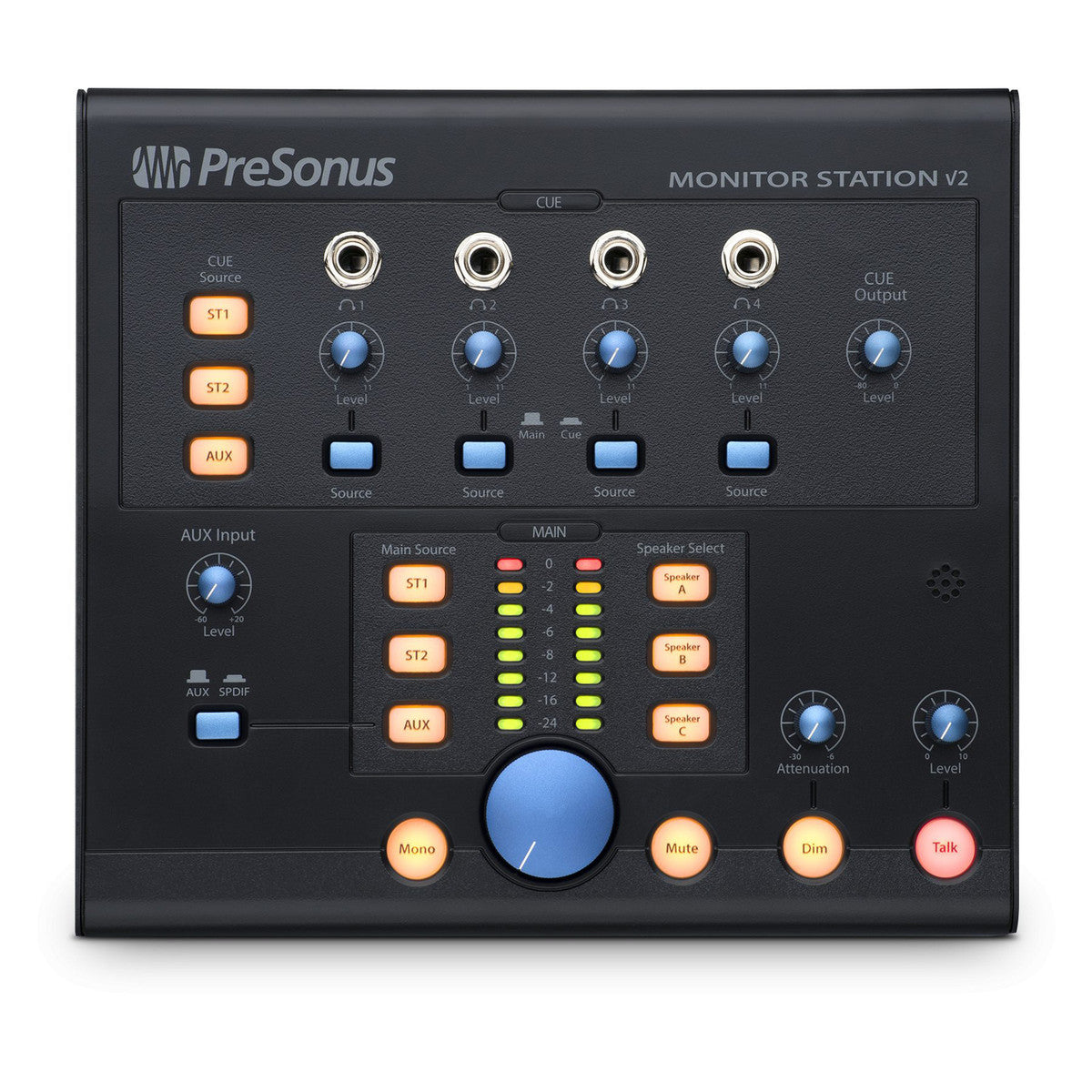

- Essential controls for precision listening: Mono, Mute, Dim with variable attenuation, and a large Main level knob keep your workflow smooth.
- LED input meters: Eight-segment colour meters for level monitoring, with selectable reference values (e.g., +4 dB, +10 dB, +18 dB).
Customer Benefits
The Monitor Station V2 simplifies source switching, speaker comparison, and headphone routing—all from one desktop device. Whether you're calibrating speaker levels for accuracy or quickly cueing musicians during recordings, its layout and controls let you focus on the mix, not the tech.
Quick Specs

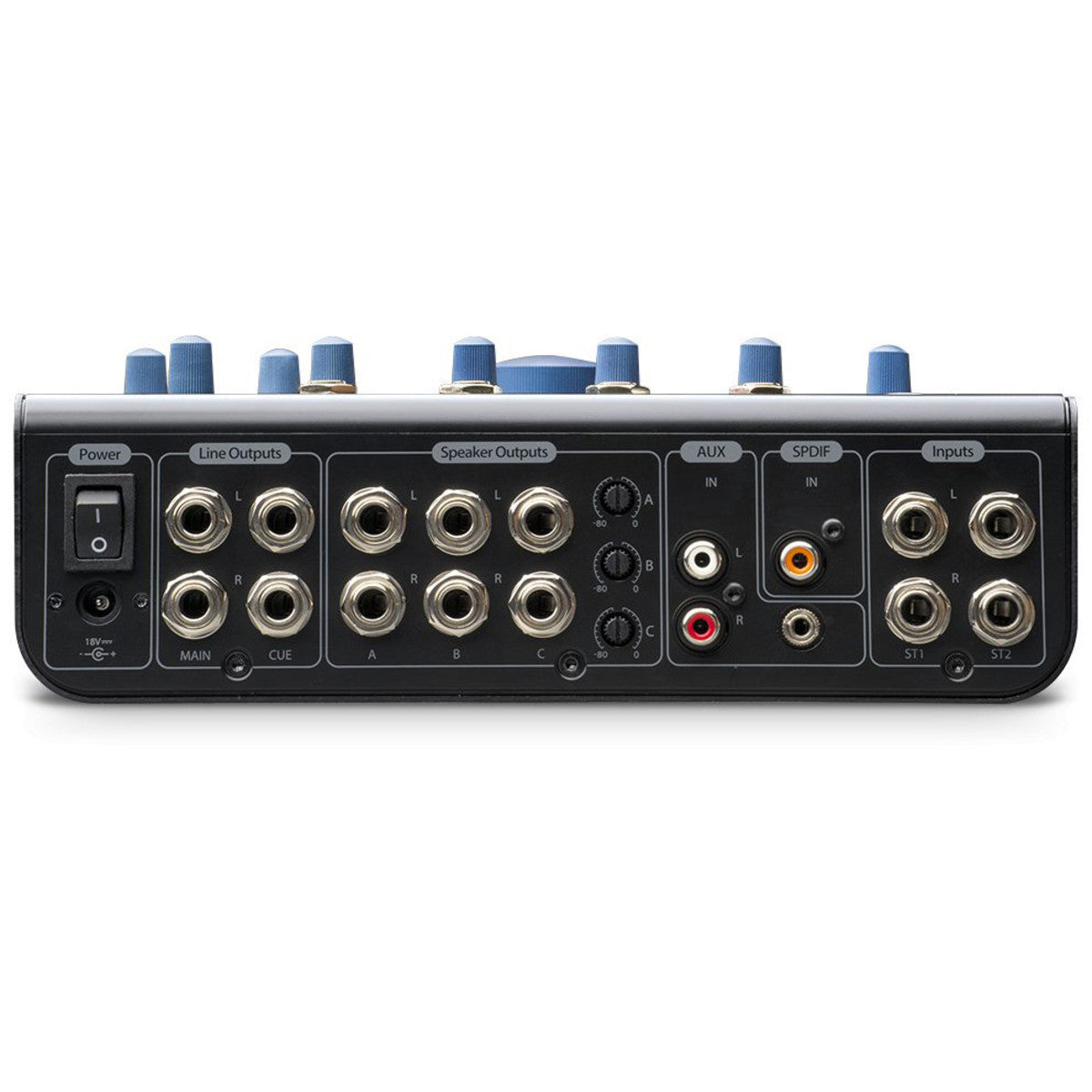

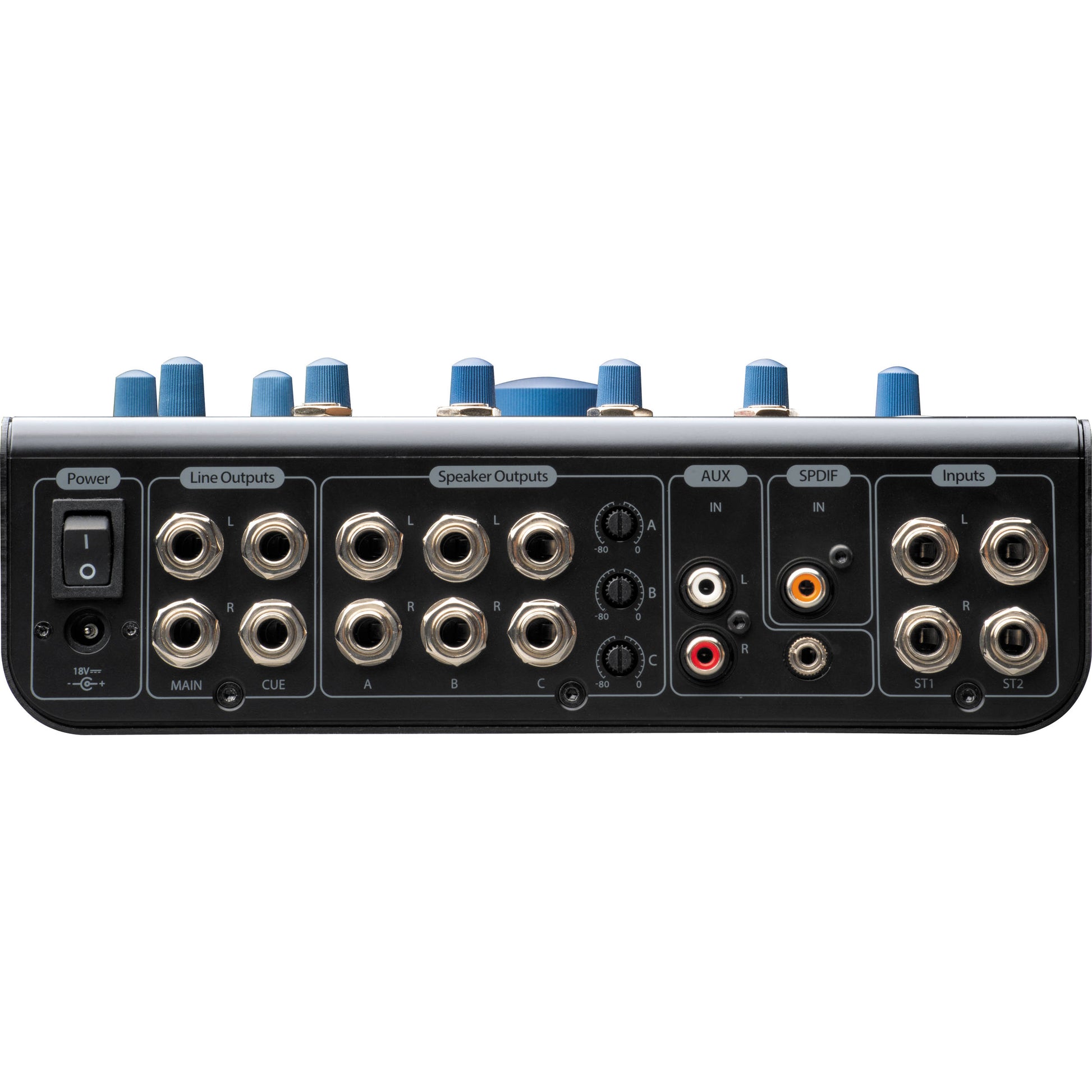

- Inputs: 2 × ¼″ TRS balanced; 1 × RCA Aux (with level control); switchable ⅛″ Aux input or RCA S/PDIF digital (44.1–96 kHz)
- Speaker Outputs: 3 stereo ¼″ TRS pairs, each with individual trim control
- Headphones: 4 × ¼″ outputs with independent Main/Cue selection and level
- Controls: Talkback mic (+15 to +55 dB gain), Mono, Mute, Dim (–6 to –30 dB), Main level knob, LED meters
- Metering: 8-segment RGB LEDs with reference settings
- Dimensions: Approximately 22.9 cm (W) × 21.6 cm (D) × 6.35 cm (H)
- Weight: Approx. 2.7 kg
What’s in the Box
- PreSonus Monitor Station V2 controller
- External 18 V DC power supply
Use Cases / Ideal For
Perfect for home, project, or professional studios needing multiple playback systems, quick source switching, and reliable talkback and headphone control. Ideal when monitoring accuracy and flexibility are priorities.
Compatibility
Works with audio interfaces, mixers, and playback devices via analog or digital inputs. Header speaker sets and headphones connect via standard ¼″ TRS; digital systems integrate via S/PDIF. Works seamlessly in both playback and recording workflows.
Pros & Cons
✅ Pros:
- Robust source, output, and headphone control in a compact desktop unit
- Talkback and LED metering streamline monitoring and calibration
- Flexible speaker and headphone routing for professional setups
- Durable build with intuitive front-panel layout
⚠️ Cons:
- Requires external power supply—no USB powering
- Fixed routing means no independent headphone mixes per user
The PreSonus Monitor Station V2 brings precision monitoring, flexible routing, and talkback capabilities into one confident and compact controller—designed to keep your workflow focused and clean at Soundium.
