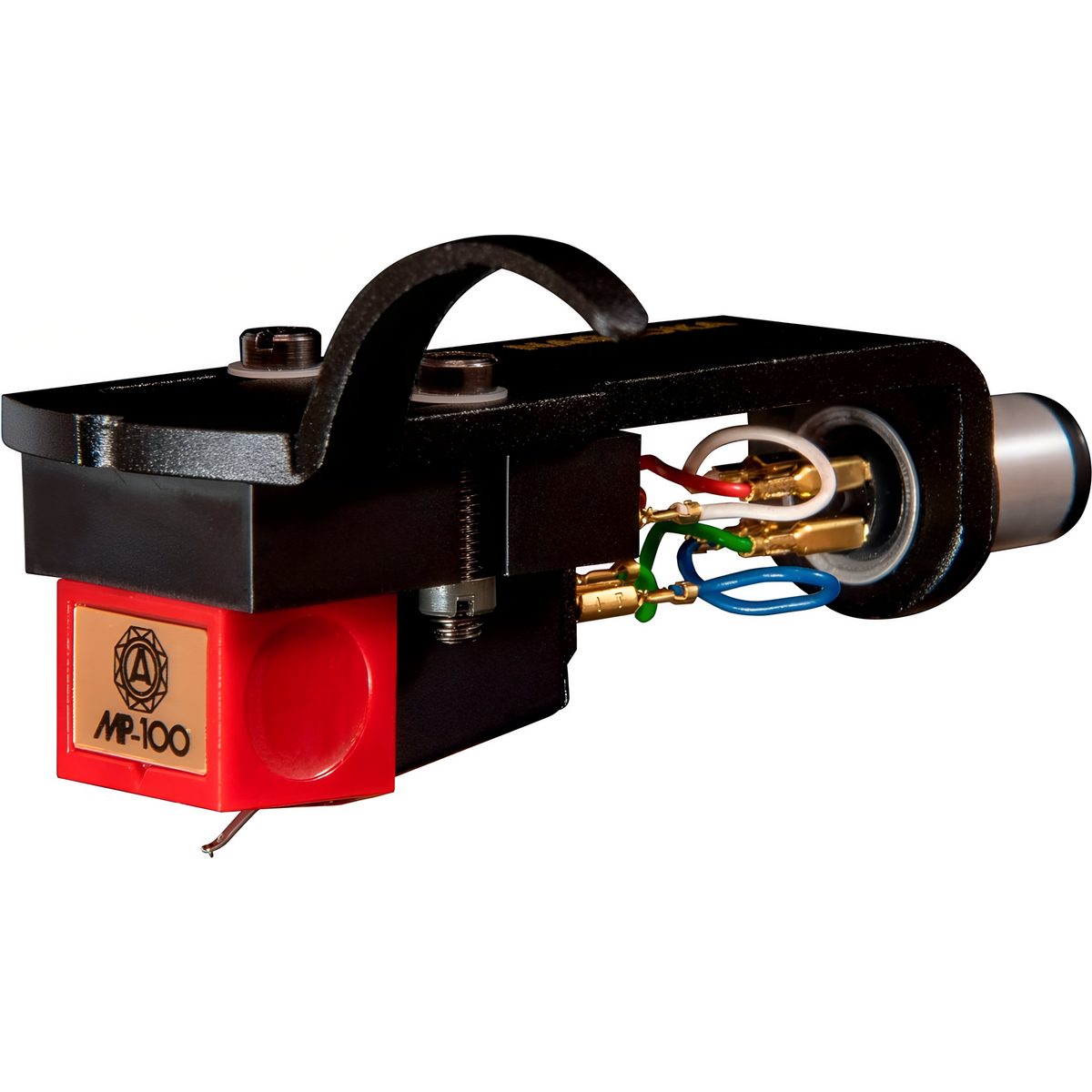

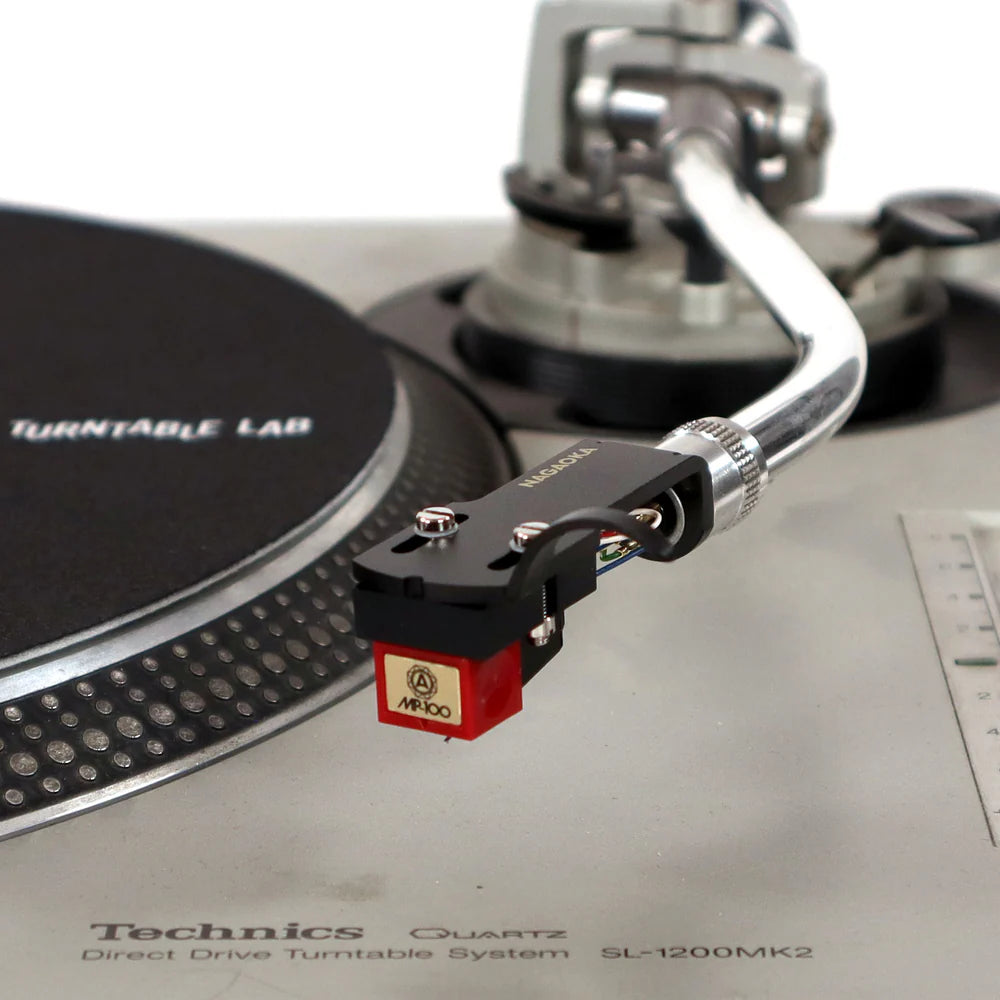

Nagaoka MP-100H – Moving-Permalloy Cartridge with Pre-Mounted Headshell

The Nagaoka MP-100H combines the warm, detailed sound of the MP-100 cartridge with the convenience of a pre-mounted headshell. Its bonded conical stylus and aluminium alloy cantilever deliver dynamic, natural playback across your vinyl collection. Ready to install and enjoy, the MP-100H provides smooth tracking and musical precision straight out of the box with Soundium.

Quick Specs

• Type: Moving-Permalloy (MM)
• Stylus: Bonded conical diamond
• Cantilever: Aluminium alloy
• Output voltage: 5.0 mV (1 kHz, 5 cm/s)
• Frequency response: 20 Hz – 20 kHz
• Channel separation: 23 dB (1 kHz)
• Channel balance: within 2.0 dB
• Recommended load: 47 kΩ
• Tracking force range: 1.5 – 2.0 g
• Cartridge weight: 6.5 g
• Headshell weight: 13.5 g

What’s in the Box

• Nagaoka MP-100H cartridge pre-mounted on headshell
• Stylus protector
• Mounting hardware
• User manual

The Nagaoka MP-100H offers effortless installation and engaging analog sound, combining reliability, warmth, and musical clarity in a ready-to-use package. Experience quality vinyl playback with Soundium.
